Hanes Chwarela - Llechi To Dinorwig


THE ROOFING SLATES OF DINORWIC [DINORWIG].

700 ACRES OF QUARRY.

Ceiliog Mawr, Chwarel PenrhynTHOUSANDS of holiday visitors every year coach round Snowdon from Carnarvon [Caernarfon], and gaze with astonishment at the terraced precipices of Elidir, opposite Llanberis. Very few, however, realise the full significance of the mighty Dinorwic [Dinorwig] or Port Dinorwic [Y Felinheli] slate quarry which has carved its way into the mountain side.

Yet this quarry is famous the world over for the slate which it produces.

No form of economy is more delusive, or more expensive in the long run, than to roof a house with inferior material, however cheap in the beginning.

Fortunately, Nature herself has provided an ideal material for the purpose-namely, slate. This stone has been hardened for centuries in the solid earth by incalculable pressure, which has rendered it extraordinarily hard-far harder than any substance, like brick or pottery, which can be produced artificially by the action of fire in kilns. Geologically slate belongs to fie oldest systems in the Primary division-pre-Cambrian, Cambrian, Ordovician, and so forth-and is thus among the oldest stones in existence. Its age is shown by the fact that it contains no fossils. Moreover, unlike all other stone, it is capable of being split longitudinally into smooth, flat layers, each of which retains the hardness of the original blocks.

WELSH SLATE THE BEST

There is no slate in the world which possesses the quality of hardness in so high a degree as that of Wales. If corroboration were required, it might be found in the significant fact that geologists have given to the oldest and hardest of slate the adjective Cambrian, Cambria being the ancient Roman name of Wales. It is in the north-west corner of Wales that the best slate is found. The observant traveller between Bangor and Carnarvon [Caernarfon], as he passes along the Menai Straits, will see everywhere slate in practical use, not only for roofs, but for nag-stones, boundary walls, gravestones, doorsteps, and the like. Half-way in the journey he will come to the small town of Port Dinorwic [Y Felinheli], which has come into existence as a harbour for the great slate quarry.

QUALITY OF DINORWIC [DINORWIG] SLATE.

Just as slate stands pre-eminent among roof materials, so Dinorwic [Dinorwig] slate is unsurpassed throughout the world in the excellence of its quality. The quarry is the largest in the world, and its slate is the hardest and most durable. It has every possible colour - blueish, reddish, grey, sea-green, &c.- and the various qualities (e.g., Best and Seconds Old Quarry, Best and Seconds New Quarry, Best and Seconds Green and Wrinkled, Best and Seconds Mottled, etc., etc ) simply cannot wear out. Quite recently a Blackburn slater stripped the roof from a house which was known to have stood unaltered for a hundred years. Dinorwic [Dinorwig] slate had been used, and he found that they were absolutely as good as new. They were immediately used for another horse-which also they will assuredly outlast.

Edrych i lawr ar Chwarel Dinorwig This intense hardness is due partly to the tremendous natural pressure which has acted for countless centuries upon the lowest rock-strata and partly also to the bands of igneous rock which have been forced up through the slate beds. Obviously the intense heat of these volcanic neighbours has submitted the slate to an ordeal to which ordinary heat is a mere nothing. Another important advantage is that the slate is absolutely impervious to the corrosive action of acids in the atmosphere. An example of this is the fact that the largest glass manufacturers in the world, Messrs. Pilkington, of St. Helens, have found it absolutely necessary to roof their works with Dinorwic [Dinorwig] slate. No other material can withstand the gases which are generated by glass-working, and the many chemical manufactories in the town. Yet Dinorwic [Dinorwig] or Port Dinorwic [Y Felinheli] slate, as it is also called, withstands this severe strain with complete equanimity.

Chwarel DinorwigSimilarly the Mersey Docks and Harbour Board always specify Dinorwic [Dinorwig] slate for their warehouses and sheds. the surface of Dinorwic [Dinorwig] slate is so hard that no damp can find ingress. Tested by chemical analysis, it emerges as the finest slate the world produces. A rough experiment emphasises this point. If overnight you affix a ring of putty to a Dinorwic [Dinorwig] slate, and fill the circle with water, no moisture will be found on the underside in the morning; in the case of inferior slate the water will gradually percolate through the pores till it readies the lower surface.

THE QUARRY ITSELF.

Orielau yn Chwarel DinorwigVisitors to North Wales cannot spend a more interesting day anywhere than at Dinorwic [Dinorwig]. The quarry itself is seven miles inland from the Menai Straits. It is cut into the south side of the mountain called Elidir, which overlooks the village of Llanberis, and confronts the great mass of Snowdon across the two lakes, Peris and Padarn. It has been worked continuously for a century and-a-half, during which millions of tons of slate have been removed.

THE DINORWIC [DINORWIG] RAILWAY SYSTEM.

Tren yn Chwarel DinorwigWhen a sufficient number of slates have accumulated and are then ready for transport, they are placed in small trucks running upon a narrow gauge railway which ramifies into every corner of the great quarry. There are upwards of 50 miles of this railway, and thousands of trucks are used. They are hauled along the terraces to the nearest incline by light locomotives, of which there are some two dozen in the workings. Down the inclines-some of which have a gradient of one in one! - there is a double line. The trucks are securely attached to an endless steel rope with a breaking strain of nearly 30 tons which winds round two great drums in a shelter at the top. the trucks, going down by force of gravity, haul up "empties," and so the circle is completed. Each gradient is complete in itself with junctions which communicate with subsidiary terraces right and left. Viewed for a distance they give the impression of a series of ladders, each beginning and terminating in a small level space where the trucks are transferred from one rope to another. Each series of such gradients ends on a sort of main line which runs the entire length of the lowest quarry level, and communicates with what may be called the trunk line from the quarry to the quays of Port Dinorwic [Y Felinheli].

NARROW GAUGE AND BROAD GAUGE.

The slates having arrived at the lowest level are examined, classified, and credited to the particular quarrymen who have delivered them. At this point an obvious problem meets with a most ingenious solution. Obviously the narrow railway required for the gradients and tunnels of the quarry system is unsuited to a seven-mile line on open and fairly level country. the quarry engineers have therefore built their trunk line with a four-foot gauge, and prepared trucks which each carry four of the smaller trucks required for quarry work. The smaller trucks are run on their own line to the very edge of the terminus of the trunk line, and pushed on to the larger trucks waiting at a lower level to receive them. They are securely held in position on the larger trucks by an automatic device. A complete train of these larger trucks, which may carry altogether 100 tons of slate, is then dispatched to Port Dinorwic [Y Felinheli] for shipment.

UNDAUNTED ENGINEERING.

Chwarelwyr yn Chwarel DinorwigThe terminus of this trunk lines is not quite the end of the journey. There is still a quarter of a mile of very steep descent to the harbour. The small trucks are, therefore, wheeled off the larger trucks, and once again separately attached to an endless chain which escorts them to fit quay, where the slates are stored close to the ships.

Sir Charles Assheton-Smith comes of a long line of ancestors who have held large tracts of land in Carnarvonshire [Caernarfonshire] since the time of Charles's II., and resides on the beautiful wooded estate of Vaynol, close to the Menai Street and the Britannia Tubular Bridge which carries the Holyhead line.

THE HARBOUR AND WHARVES.

Port Dinorwic [Y Felinheli] itself nestles in a tiny inlet opening out of the Strait. Its old name is Velinheli, which means "Saltwater Mill," and derives from an old mill which stood on the inlet and used the ebb and How of the tide to turn its wheels. The inlet was lengthened and widened some ten years ago to admit the fleet belonging to the quarry. It is entered by a lock, and there is a dry dock for repairs. At the head is the private electric light and power station which supplies not only the wharves, but also the village of Port Dinorwic [Y Felinheli], which has grown out of the needs of the great quarry enterprise. The harbour has a complete repairing equipment, in charge of a competent engineer.

THE OVERSEAS TRAFFIC.

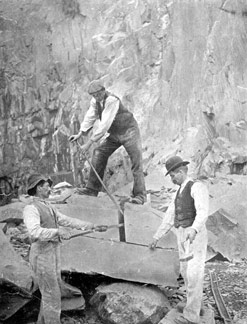

Tri Chwarelwr yn Chwarel Dinorwig yn torri llechfaenDay after day the steamers leave Port Dinorwic [Y Felinheli] carrying slates to Liverpool and all the ports of the British Isles, especially Lancashire, Scotland and the East Coast. From Liverpool the slates are sent all over the world - to Germany, Austria, South America, India, Australia and the Cape. The present writer saw a consignment of 200 tons ready for shipment to Sydney via Liverpool. On an average some 100,000 tons annually leave the harbour of Port Dinorwic [Y Felinheli].

THE QUARRYMEN.

More than 3,000 men are employed in the quarry and at the harbour. Owing in large measure to the generous interest taken in them by Sir Charles and Lady Assheton-Smith, the relations between them are cordial in the extreme. It is actually twenty-five years since any dispute has occurred. When we remember the acute controversies to which industrial revolutions have given rise in that time, this fact is sufficiently remarkable. The men grow old in the service, and it is no uncommon thing to find a man of over seventy-five years still at work, hale and hearty. In many cases, too, the trade is hereditary through many generations.
Quarrying is done and paid for by the piece. Two men join together as "partners," and receive a definite area of rock on which to work. This allotment is called a "bargain." It is always 21 ft long, and ranges up to a height of 75 ft. One of the partners works at the face of the rock blasting and preparing the rough blocks which are loosened ; the other receives it in their common shed and finishes oft the work. The two partners hire a third man, known as their journeyman, a youth who has served a kind of apprenticeship of about two years. Every two weeks the slate produced from each bargain is calculated and paid for, the partners sharing, and jointly remunerating their journeyman. Payment is made at so much per 100 slates, according to their size, together with a certain poundage according to the quality of the slates produced.

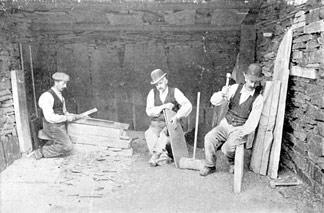

Chwarelwyr yn hollti llechiMost of the men live on the proprietor's land in Llanberis, Ebenezer, and other villages. They are conveyed to the quarry by special carriages on the quarry line, for which they pay a nominal sum. In former days they propelled themselves along the rail on hand-worked velocipedes, turn and turn about-a method both hard and dangerous to health. Some 300 men have their homes in Anglesey; for these men Sir Charles has erected barracks in which they can live while at work for the nominal charge of one shilling per annum.

Hours are from 7 a.m. to 5.30 in summer, and in winter from 8 a.m. to 4 p.m., with an hour for dinner, but the blasting intervals add up to a considerable further period of rest. There are 23 working days in each month, the Saturdays following the monthly pay-days being free. Other recognised holidays are Good Friday, Easter Saturday, Easter Monday, Whit Monday, Harvest Festival, and Christmas Day.

Chwarelwyr yn llwytho wageni gyda llechi i'w cludo i'r Felinhelins for delivery to Y FelinheliSerious accidents are remarkably few, and the majority of accidents which occur are of the nature of small cuts and bruises from splinters of rocks. Sir Charles Assheton-Smith provides a completely furnished hospital, which is free to all his employees. There is a highly-qualified surgeon with a staff of nurses, but it is satisfactory to learn that the in-patients are practically never numerous enough to occupy the whole accommodation. There are nearly a hundred pensions of £13 per annum, which are allocated to the deserving cases as they fall vacant. But the work and the climate are so healthy, the men so thrifty and contented in the mass, that both pensions and hospital are more than adequate.

The whole face of Elidir mountain is carved into terraces connected by steep gradients, which give access from the lake level to the topmost workings, some 1,800 feet above the lake. Not even the purist in literary style could gainsay the propriety of describing the quarry as colossal. As the visitor is conveyed by the light railway round the base of the mountain, cutting after cutting, precipice after precipice comes into his view. Cavernous recesses cut into the heart of the rock, and an apparently endless series of terraces scar the grey background of the hillside.

Even from the vantage ground of a terrace half-way up the quarry the highest workings are out of sight ; from no spot can one see all the cuttings which have been quarried into the wide curve of the mountain side. The total area of the workings is no less than seven hundred acres.

Llechi yn disgwyl i gael ei llwytho yn Y FelinheliThe story of the slate from the moment of its removal from the solid rock to its shipment in one of the quarry's steamers at Port Dinorwic [Y Felinheli] is one of absorbing interest The first step is to blast the rock and detach fragments of suitable size for working. This blasting requires great skill and experience. If the explosion is too violent the slate will be shivered to atoms: the charge must be carefully calculated and inserted in such a way as to detach the required portion. The hole into which the charge is inserted is made by a rod called a rock-drill, worked by steam or by compressed air, and capable of drilling a hole seven yards deep.

BLASTING PRECAUTIONS.

Rigid regulations govern the blasting operations. They must be carried out at fixed times and simultaneously at all the workings. At the appointed hour a steam whistle sounds so as to be audible all over the quarry. Immediately all the men, except those who are to fire the trains of powder, retire to specially constructed shelters, which are absolutely proof against any rock which might be shot into the air. At a second signal the fuses are fired, and the remaining men join their comrades. A period of profound silence ensues, and then all the quarry booms and thunders with a series of explosions. Five minutes after the whistle blows again, and the men return to work on the detached masses of slate. Each party is required to watch its own blast; and should any charge have failed to explode, a signal is given, and all men in the vicinity are ordered to remain in shelter for a full half-hour. If is frequently necessary to blast away outcrops of useless rock, such as granite. Then more powerful explosives are used, such as dynamite and nitro-glycerine. Of gunpowder alone the almost incredible quantity of 90 tons is used annually in ordinary blasting.

SPLITTING AND TRIMMING.

Wageni wedi ei llwytho yn Y FelinheliTwo processes are followed in working the rough blocks of slate-one by machinery, one by hand. the finest qualities are so amazingly hard that machinery is useless; no saw would be strong enough and the edges of the stone would be chipped and splintered. Hence such slates are worked by hand with a chisel and hammer. There is something almost uncanny in the way in which the slates are split into layers of required thickness. The chisel is placed at any point in the edge of the slate, and after one or two light taps of the hammer, an even crack appears. the two layers are then gently pressed apart with their new surfaces absolutely smooth and even. It is actually possible to divide thus a slab one inch thick into sixteen separate slates. In practice, however, no slates are made less than 1/6 inch thick. The quarryman's skill consists in splitting in such a way as to avoid waste and to make the slates as large as possible up to an ordinary maximum of 24 inches by 14.

The trimming is done by placing the slate upon a sharp edge, and breaking off protuberances by short, sharp strokes with a kind of knife blade.

Cutting by machinery is a more economical method in the case of suitable material. For this purpose circular saws are used. the work is accomplished with greater accuracy and considerably less wastage. About half-way up the quarry there is a large shed which contains some thirty of these saws driven by a 60-horse-power motor. For this and two other similar motors the power is obtained from the North Wales Electric Power Company. Three wires carry a 10,000 volt current to the quarry, where it is reduced to 500 volts and distributed round the upper parts of the workings, where water power is not attainable.



Tarddiad: Slate Trades Journal, Rhagfyr 1912
